Timeline Slides in PowerPoint: Complete Guide for Consultants

A timeline slide is a visual representation that shows events, phases, or milestones arranged chronologically. It answers the fundamental question: "What happens when?" Unlike project plans buried in spreadsheet rows, a timeline slide communicates project structure visually so that executives can absorb it in seconds.

Timeline slides appear constantly in consulting presentations—from project kickoffs to steering committee updates to strategic roadmaps. The challenge is balancing completeness with clarity: showing enough information for stakeholders to understand the plan, but not so much that the slide becomes overwhelming.

This guide covers what timeline slides are, when to use each type, best practices from MBB consulting, common mistakes, and how to create them efficiently—whether using native PowerPoint or professional add-ins.

What Is a Timeline Slide?#

A timeline slide is a visual representation that shows events, phases, or milestones arranged chronologically. It answers the fundamental question: "What happens when?"

Unlike a project plan buried in spreadsheet rows, a timeline slide communicates project structure visually. Executives can scan the slide and immediately understand the overall journey, major phases, and critical dates.

The best timeline slides balance completeness with clarity. They show enough information for stakeholders to understand the plan, but not so much that the slide becomes overwhelming. The goal is comprehension in seconds, not minutes.

When to Use Timeline Slides#

Timeline slides appear constantly in consulting presentations. Here are the most common use cases.

Project Kickoffs and Planning#

Every consulting engagement starts with a timeline. Clients need to see the project structure, understand what happens when, and know when they'll see deliverables. A clear timeline builds confidence that the team has a plan.

What to show: Major phases, key milestones, client touchpoints, and the overall duration.

Executive Status Updates#

Steering committees and sponsors want to know: "Are we on track?" Timeline slides with a "today" marker instantly answer this question. Completed phases appear as filled bars, future work as outlined shapes.

What to show: Progress against plan, upcoming milestones, and any timeline changes since the last update.

Implementation Roadmaps#

System implementations, process redesigns, and organizational changes require detailed timelines showing parallel workstreams. These roadmap slides communicate how different pieces fit together.

What to show: Workstreams running in parallel, dependencies between activities, integration points, and go-live dates.

Strategy Presentations#

Multi-year strategic plans need timelines showing the transformation journey. These high-level timelines focus on capability building and value realization rather than individual tasks.

What to show: Strategic phases, capability milestones, investment stages, and expected outcomes.

Product and Technology Roadmaps#

Product teams use timelines to communicate feature releases and platform evolution. Technology teams show system migrations and architecture changes over time.

What to show: Feature releases, platform milestones, technology transitions, and retirement dates.

When NOT to Use Timelines#

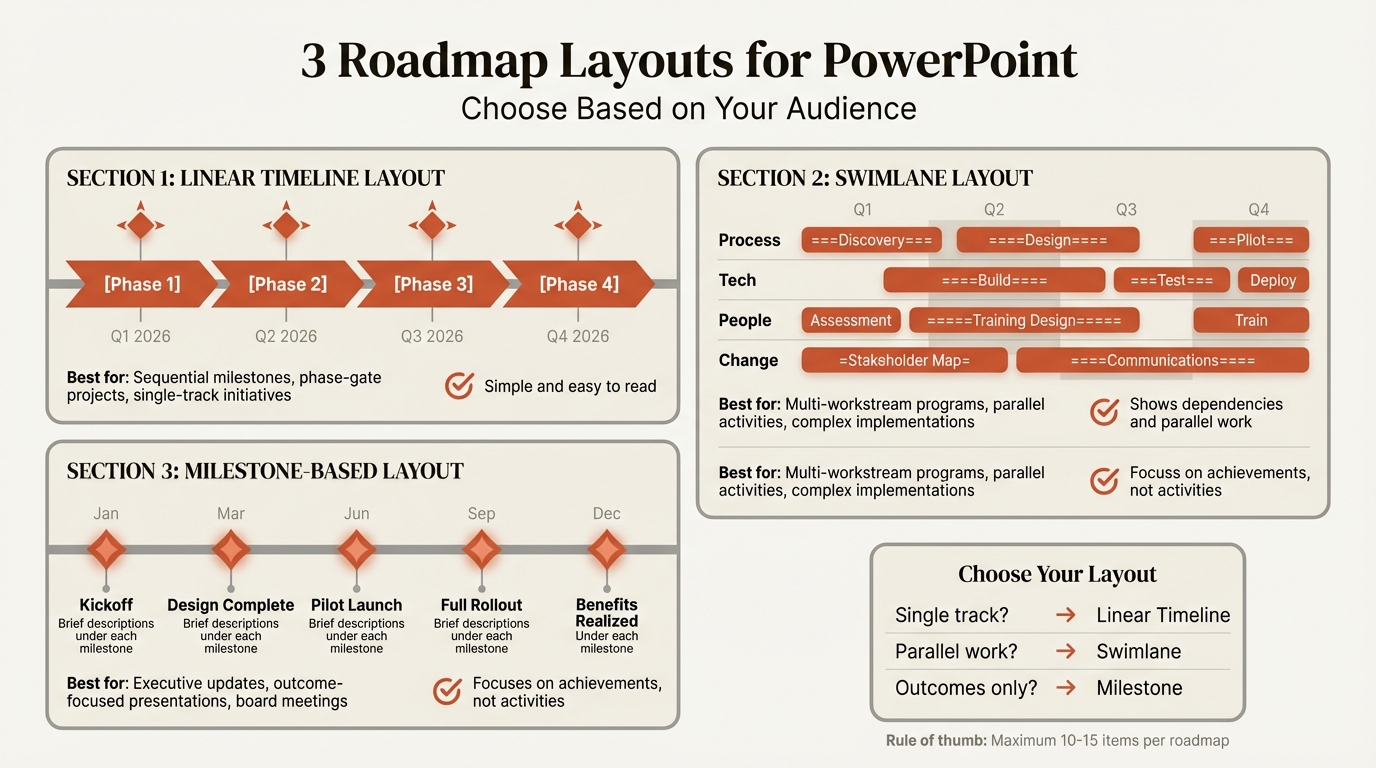

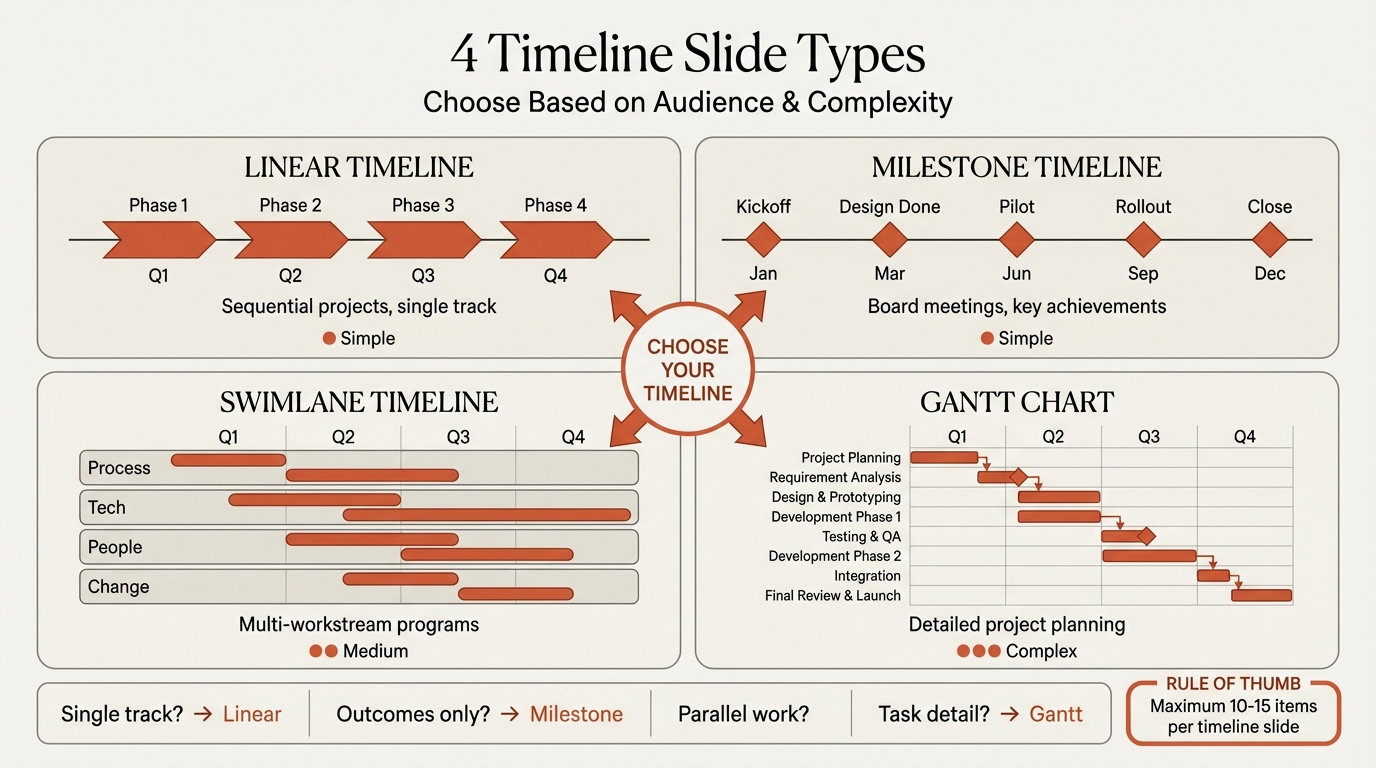

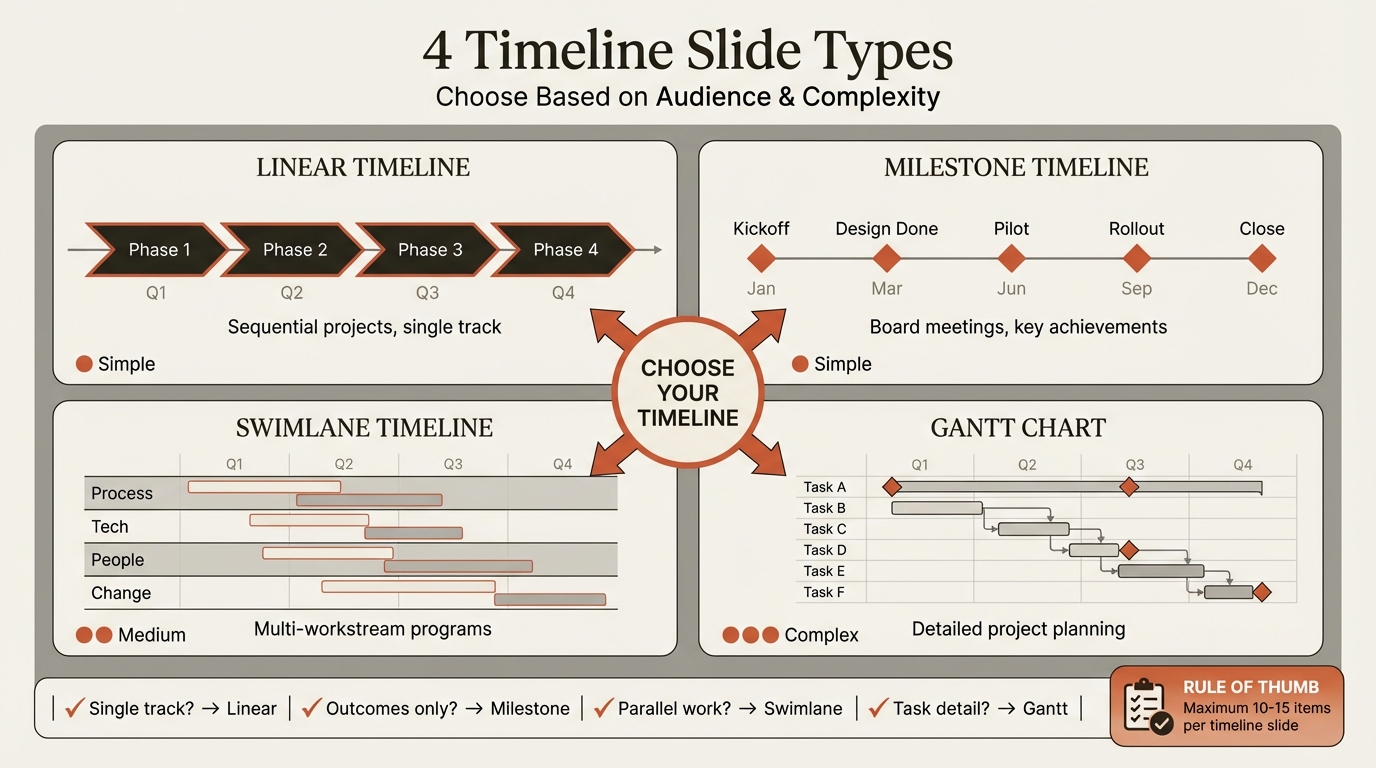

Types of Timeline Slides#

Different situations call for different timeline formats. Here are the four types we use most frequently.

Linear Timeline#

The simplest format: events or phases arranged sequentially along a horizontal line.

Structure:

|----Phase 1----|----Phase 2----|----Phase 3----|----Phase 4----|
     Jan            Feb             Mar             Apr

Best for:

• Simple sequential projects
• Historical timelines
• Process phases that don't overlap
• Company milestones or history

Limitations:

• Cannot show parallel activities
• Difficult to show varying durations
• Limited to single-track narratives

Linear timelines work well for executive summaries where you need to show the basic project structure without complexity. They're the "elevator pitch" version of your timeline.

Milestone Timeline#

Emphasizes specific dates and achievements rather than continuous activities. Milestones appear as prominent markers along the timeline.

Structure:

     Jan        Mar          Jun          Sep          Dec
      |          |            |            |            |
      v          v            v            v            v
 [Kickoff]  [Design      [Pilot       [Full        [Benefits
            Complete]     Launch]      Rollout]     Realized]

Best for:

• Board presentations focused on outcomes
• Contract or regulatory deadlines
• Launch-oriented presentations
• Go/no-go decision tracking

Limitations:

• Doesn't show activities between milestones
• Less effective for complex multi-workstream projects
• May oversimplify the actual work involved

Milestone timelines answer the executive question: "What will we see and when?" They're particularly effective when specific achievements matter more than the activities that produce them.

Swimlane Timeline#

Stacks multiple parallel workstreams vertically, each running along the same horizontal timeline. This is the standard format for complex implementations.

Structure:

             Q1 2026      Q2 2026      Q3 2026      Q4 2026
-----------------------------------------------------------------
Process      [Discovery]  [Design]     [Pilot]      [Rollout]
Technology                [Build]      [Test]       [Deploy]
People       [Assessment] [Training design]         [Training]
Change Mgmt  [Stakeholder mapping] [Communications] [Adoption]

Best for:

• Multi-workstream transformation programs
• Cross-functional initiatives
• Implementation roadmaps
• Complex projects with parallel activities

Limitations:

• Can become crowded with too many swimlanes
• Harder to see overall project phases
• Requires more slide space

Swimlane timelines are the consulting workhorse. They show how different workstreams progress together, where dependencies exist, and how the pieces integrate. For detailed project planning, they're essential.

Gantt Chart Timeline#

The most detailed format, showing specific task durations with precise start and end dates. Gantt charts include dependency arrows and can show hundreds of tasks.

Structure:

Task                    |  Week 1  |  Week 2  |  Week 3  |  Week 4  |
------------------------|----------|----------|----------|----------|
Discovery               |▓▓▓▓▓▓▓▓▓▓|          |          |          |
Requirements            |     ▓▓▓▓▓|▓▓▓▓▓▓▓▓▓▓|          |          |
Design                  |          |     ▓▓▓▓▓|▓▓▓▓▓▓▓▓▓▓|          |
Development             |          |          |    ▓▓▓▓▓▓|▓▓▓▓▓▓▓▓▓▓|

Best for:

• Detailed project management
• PMO reporting
• Implementation teams
• Resource planning

Limitations:

• Too detailed for executive presentations
• Requires regular updates
• Can overwhelm audiences with information

Gantt charts belong in appendix slides or working sessions, not main-deck executive summaries. Use them when your audience needs task-level detail—typically project managers and implementation teams.

Timeline Slide Best Practices#

After building hundreds of timelines across consulting engagements, these practices consistently produce better results.

Match Granularity to Audience#

Executives and project managers need different levels of detail.

Show executives the "what" at a high level. Save the detailed "how" for working sessions with implementation teams.

Choose the Right Time Scale#

Match your timeline scale to the project duration.

A 6-month project shown in days becomes an unreadable mess. A 2-week sprint shown in months loses all useful information. Match the scale to the scope.

Limit Items to 10-15 Maximum#

The human brain effectively tracks 5-7 chunks of information. Beyond 15 items, comprehension drops sharply.

If your timeline has more than 15 items, you've included too much detail. Group related activities, remove sub-tasks, and put the detail in an appendix.

Use Color Strategically#

Color creates visual hierarchy and grouping. Use it deliberately:

Avoid: Rainbow timelines where every item is a different color. When everything stands out, nothing does.

Include 3-5 Clear Milestones#

Milestones anchor executive attention. They answer: "What can I look for to know we're on track?"

Effective milestones:

• Specific and verifiable ("System go-live" not "Progress made")
• Dated explicitly ("March 15" not "mid-Q1")
• Limited in number (3-5 for a 12-month project)
• Placed at decision points, deliverables, or external deadlines

Common milestone types:

• Decision gates (approve/reject points)
• Deliverables (documents, designs, prototypes)
• Go-live events (launches, deployments)
• External deadlines (regulatory, contractual)

Without milestones, timelines are just bars on a line. With milestones, they become accountability tools.

Add a "Today" Marker for Status Presentations#

For status updates, a vertical line showing today's date instantly answers "Where are we?"

This simple addition transforms a static project plan into a dynamic progress report. Stakeholders can immediately see completed work to the left and upcoming work to the right.

Build for Updates#

Timelines change. Dates slip. Phases extend. New items appear. If updating your timeline takes 30 minutes, you'll present outdated information rather than fight with PowerPoint.

Build for flexibility:

• Use add-ins with Excel linking
• Group related shapes so they move together
• Avoid manual connector lines that break when items move
• Keep source data in a simple, accessible format

Deckary's Gantt chart feature creates timelines from Excel that update automatically when source data changes—essential for presentations that need regular updates.

Common Timeline Mistakes#

These errors appear constantly in timelines we review.

Mistake 1: Using SmartArt for Complex Projects#

Problem: Trying to show a multi-workstream implementation using SmartArt's Basic Timeline.

Why it fails: SmartArt timelines can only show sequential items. They cannot display parallel activities, varying durations, or overlapping phases.

Fix: SmartArt works for simple 5-8 item sequential timelines. For anything more complex, use swimlane layouts with shapes or specialized add-ins.

Mistake 2: Too Much Detail#

Problem: Cramming 40 tasks onto one slide because "the client needs to see everything."

Why it fails: Executives lose the thread when timelines show too much. They can't identify what matters, so they assume nothing does.

Fix: Create a summary timeline with 10-15 items. Put the detailed version in the appendix. Ask: "If an executive only has 30 seconds, what do they need to see?"

Mistake 3: Missing Milestones#

Problem: Showing only activity bars without key dates or deliverables.

Why it fails: Timelines without milestones don't answer the executive question: "What will we see and when?"

Fix: Add 3-5 milestone markers at key dates. Executives care more about "When is go-live?" than "What happens in Week 7?"

Mistake 4: Wrong Time Scale#

Problem: Using a daily scale for a 2-year program, or quarterly scale for a 3-week sprint.

Why it fails: Mismatched scales make timelines either unreadable or uselessly vague.

Fix: Match the time scale to project duration. Weeks for 1-3 month projects, months for 3-12 month projects, quarters for multi-year initiatives.

Mistake 5: No Visual Hierarchy#

Problem: Every bar looks identical—same color, same size, same weight.

Why it fails: When everything looks equal, nothing stands out. Executives can't quickly identify major phases or critical milestones.

Fix: Create visual differentiation. Major phases should be more prominent than sub-items. Milestones should stand out from activities.

Mistake 6: Static Charts That Can't Update#

Problem: Building a beautiful timeline in PowerPoint shapes, then spending 45 minutes updating it when one date changes.

Why it fails: Timelines that are painful to update don't get updated. Teams present outdated plans rather than fight with PowerPoint.

Fix: Use tools with live Excel linking. Deckary and think-cell create timelines that update in seconds when source data changes.

Mistake 7: Ambiguous Dates#

Problem: "Q2" without specifying the year, or phases that overlap confusingly.

Why it fails: Stakeholders reviewing timelines months later can't tell if "Q2" means Q2 2026 or Q2 2027. Ambiguity undermines trust.

Fix: Always include the year. Use explicit dates for milestones ("June 15, 2026" not "mid-Q2"). Make phase boundaries clearly visible.

How to Create Timeline Slides in PowerPoint#

You have three options for building timelines, each with different trade-offs.

Method 1: SmartArt Graphics (5-15 minutes)#

PowerPoint's built-in SmartArt timelines offer the fastest native option.

Step-by-step:

1. Go to Insert > SmartArt
2. Select Process from the category list
3. Choose Basic Timeline or Circle Accent Timeline
4. Click [Text] placeholders to add your content
5. Use SmartArt Design tab to change colors and styles

Adding more items:

• On the SmartArt Design tab, click Add Shape
• Choose Add Shape Before or Add Shape After

Pros:

• Built into PowerPoint—no add-ins needed
• Professional-looking templates
• Easy to add/remove items

Cons:

• Only shows sequential items (no parallel activities)
• Cannot display varying durations
• No Excel linking
• Limited customization options

Best for: Simple 5-8 item sequential timelines, company history slides, basic process phases.

Method 2: Manual Shapes (30-60 minutes)#

Build timelines from scratch using rectangles, lines, and shapes.

Step-by-step:

1. Insert a horizontal line as your timeline axis
2. Add tick marks or gridlines for time periods
3. Draw rectangles for each activity/phase
4. Position bars according to start dates and durations
5. Add diamond shapes for milestones
6. Insert text boxes for labels
7. Group related elements

Pros:

• Full control over design
• Can show parallel activities and overlapping phases
• Works on any computer

Cons:

• Time-consuming to create
• Painful to update when dates change
• Alignment issues are common
• No data linking

Best for: One-time timelines that won't need updates, when you need specific design elements not available in templates.

Method 3: PowerPoint Add-ins (5-10 minutes)#

Specialized add-ins like Deckary, Think-cell, and Office Timeline are purpose-built for professional timelines.

How add-ins work:

1. Prepare your data in Excel (tasks, start dates, end dates)
2. Select the data range
3. Click the add-in button (e.g., "Gantt" in Deckary)
4. Drag the chart onto your PowerPoint slide
5. Adjust formatting, colors, and time scale

Pros:

• Professional results in minutes
• Excel data linking for automatic updates
• Handles parallel activities, milestones, dependencies
• Consistent formatting

Cons:

• Requires add-in installation
• Cost (though significantly less than time saved)

Best for: Professional timelines that need regular updates, consulting deliverables, executive presentations.

Method Comparison#

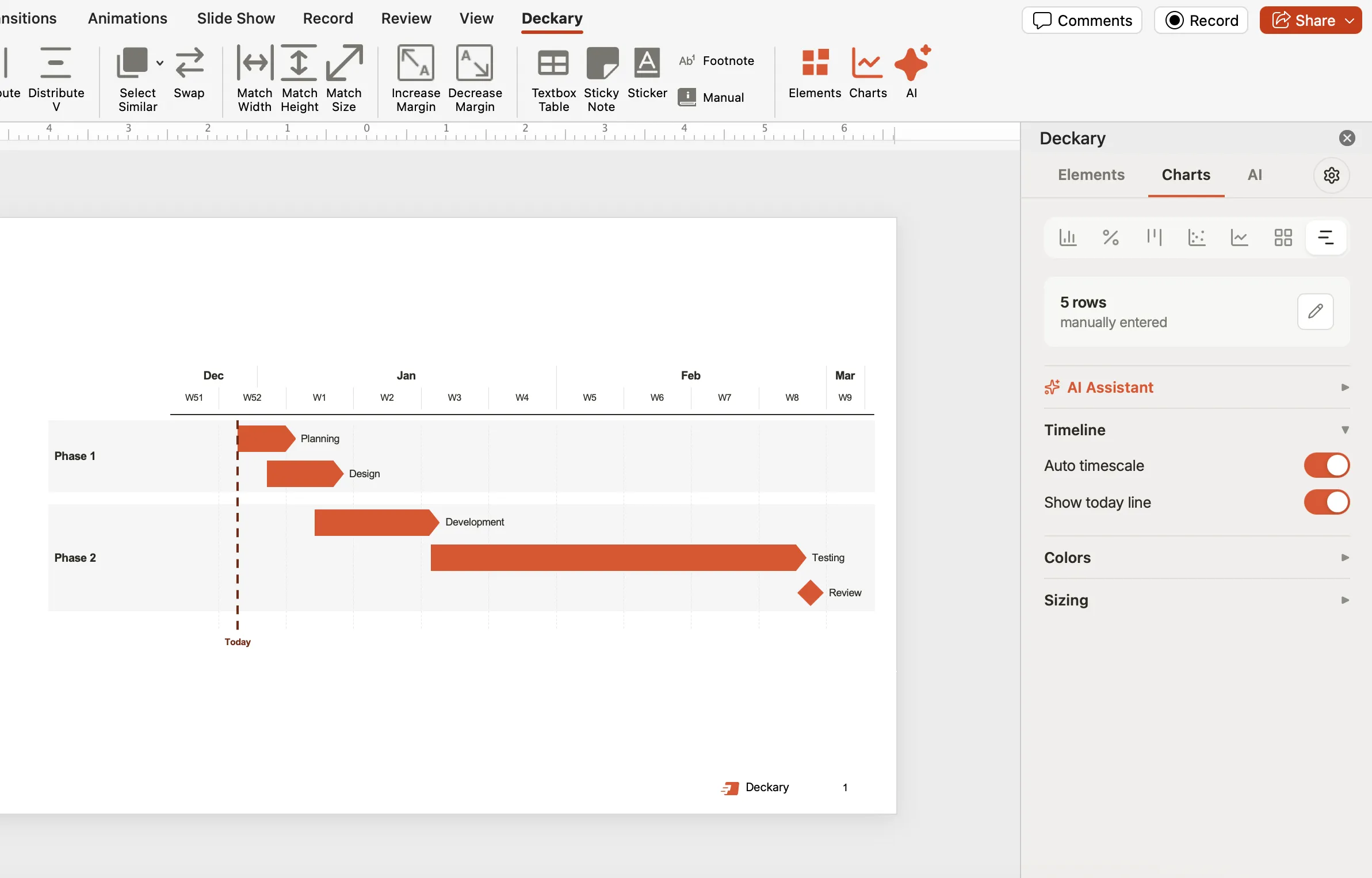

Creating a Project Timeline in Deckary#

Here's how we build a standard project timeline using Deckary's Gantt chart feature.

The Data#

In Deckary (5-10 minutes)#

1. Prepare data in Excel with Workstream, Activity, Start Date, and End Date columns
2. Select the data range including headers
3. Click "Gantt" in the Deckary ribbon
4. Drag onto PowerPoint slide
5. Adjust timeline scale—Deckary auto-detects weeks or months
6. Set workstream colors by clicking each swimlane
7. Add milestones for Go-Live and key dates
8. Toggle on today marker for status presentations

In Native PowerPoint (45+ minutes)#

1. Draw a horizontal timeline axis
2. Add monthly gridlines and labels
3. Calculate the horizontal position for each bar's start date
4. Draw rectangles for each activity, manually positioned
5. Adjust bar lengths based on duration
6. Add swimlane labels for workstreams
7. Insert diamond shapes for milestones
8. Add text labels for each activity
9. Align everything manually
10. Repeat when any date changes

The difference is dramatic. What takes 5-10 minutes in Deckary takes 45+ minutes manually—and when the inevitable "Can you move Phase 2 back a week?" request arrives, updates take 30 seconds versus 20+ minutes.

Timeline Templates and Examples#

Several resources offer professional timeline templates for PowerPoint:

Template Sources#

Consulting-Style Timeline Examples#

The best consulting timelines share common characteristics:

McKinsey-style: Clean, minimal, with heavy use of phases and milestones. Often uses monochromatic color schemes with one accent color for key dates.

BCG-style: Slightly more visual, with clear workstream separation and visual hierarchy between major phases and supporting activities.

Bain-style: Outcome-focused, often tying timeline phases to value realization milestones and business impact.

For MBB-style templates created by ex-consultants, Slideworks offers consulting toolkit packages. These match the formatting standards used at top firms.

Timeline Slide Checklist#

Before presenting, verify:

Content

• 10-15 items maximum (not a project plan)
• Clear phases with meaningful names
• 3-5 key milestones with specific dates
• Appropriate level of detail for audience
• All dates include the year

Formatting

• Action title states the takeaway (not just "Timeline")
• Time scale appropriate for project duration
• Colors used strategically for grouping
• Visual hierarchy emphasizes important items
• All elements aligned properly

Clarity

• Executives can grasp the message in 30 seconds
• Milestones are specific and verifiable
• Parallel activities are clearly distinguishable
• "Today" marker included for status presentations

Practicality

• Source data is accessible for updates
• Timeline can be updated when plans change
• Detailed schedule available in appendix if needed

Summary#

Timeline slides are fundamental to consulting communication. They transform complex project plans into visual narratives that executives understand in seconds.

Key takeaways:

1. Choose the right type: Linear for sequential, milestone for outcomes, swimlane for parallel workstreams, Gantt for detailed planning
2. Match granularity to audience: Executives need 5-10 items, project managers need task-level detail
3. Limit items to 10-15: More detail belongs in the appendix
4. Include 3-5 clear milestones: Specific dates that stakeholders can track
5. Use color strategically: Create grouping and hierarchy, not rainbow effects
6. Build for updates: Use tools with Excel linking (Deckary, think-cell)
7. Add a "today" marker: Essential for status presentations
8. Match time scale to duration: Weeks for months-long projects, quarters for multi-year initiatives

The goal isn't to show every task in your project plan. It's to communicate the project journey in a way that stakeholders immediately understand. Master the timeline slide, and you've mastered one of consulting's most essential visual tools.
