Scatter Plots in PowerPoint: When to Use Them and How to Create Them

Scatter plots reveal relationships that other chart types miss. Where bar charts compare categories and line charts show trends over time, scatter plots answer a different question: how does one variable affect another?

After analyzing 150+ data presentations—financial models, operations dashboards, and market research reports—we found scatter plots appear in under 15% of decks. When they do appear, they either provide critical insight into correlations or confuse audiences who expected a simpler visualization. The difference comes down to choosing the right scenario and formatting for clarity.

This guide covers when scatter plots outperform alternatives, how to create them in PowerPoint, and the formatting decisions that separate meaningful correlations from cluttered point clouds. For other chart types and when to use them, see our PowerPoint Charts Guide.

What Is a Scatter Plot?#

A scatter plot (also called an XY chart) uses dots to represent values for two different numeric variables. The position of each dot on the horizontal and vertical axis indicates values for an individual data point. Unlike bar charts that compare discrete categories or line charts that connect sequential points, scatter plots show the relationship between two continuous variables.

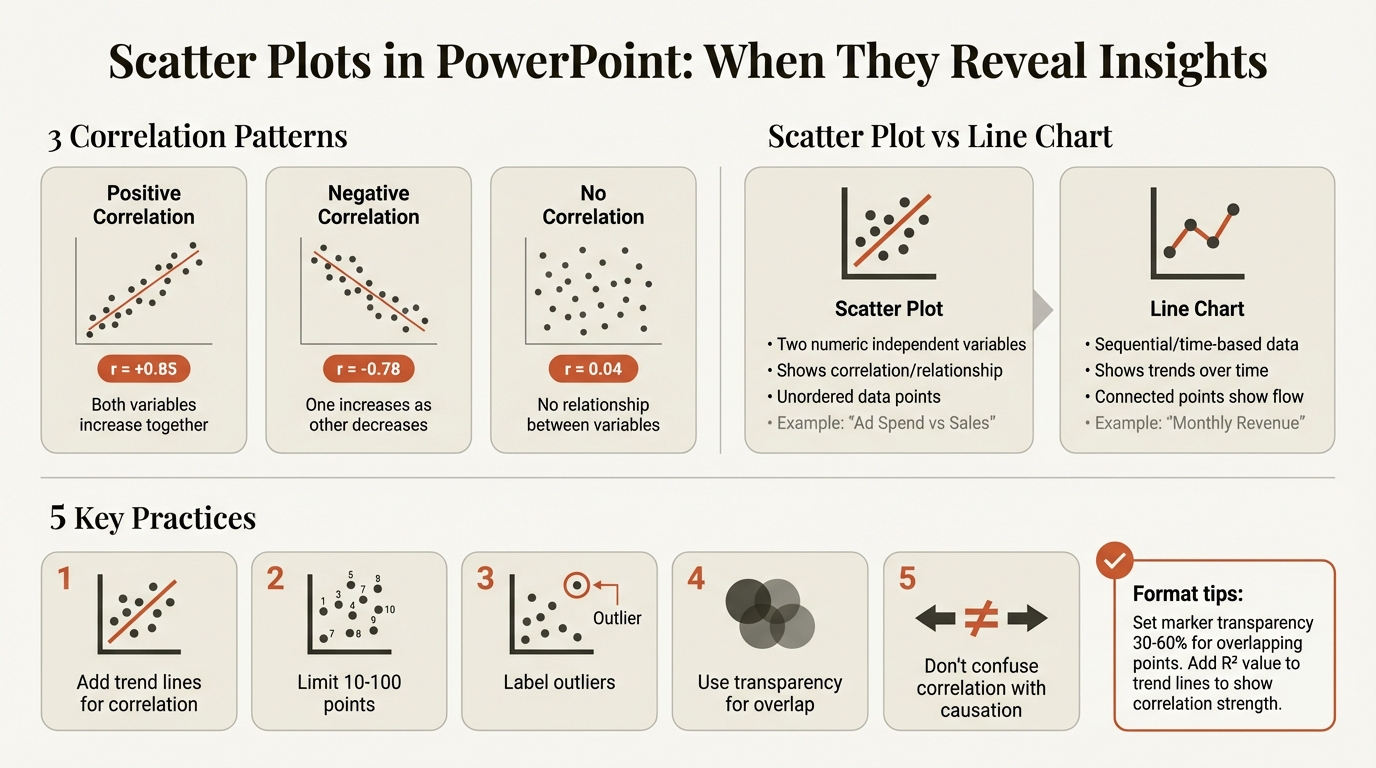

When to Use Scatter Plots#

Scatter plots are used to observe relationships between variables. More specifically, they work best in three scenarios:

Investigating correlations. When you suspect two variables might be related—advertising spend and sales, employee experience and productivity, or price and demand—scatter plots make patterns visible. The closer data points form a line, the stronger the correlation. Upward patterns indicate positive correlation (both variables increase together), downward patterns indicate negative correlation (one increases as the other decreases), and random scatter indicates no relationship.

Identifying outliers. Data points that deviate from the general pattern become immediately obvious in scatter plots. In sales analysis, outliers might reveal high-value customers worth special attention. In quality control, they might flag defective units requiring investigation.

Comparing across segments. Using different colors or shapes for subgroups reveals whether relationships hold across segments. A scatter plot showing price versus satisfaction might use different colors for customer tiers, revealing whether premium customers behave differently than standard customers.

When NOT to Use Scatter Plots#

Scatter Plots vs. Line Charts#

The most common confusion: when to use scatter plots versus line charts.

Use scatter plots when:

• Both X and Y variables are numeric and independent
• You want to show correlation or relationship strength
• Data points are unordered (no natural sequence)
• You're comparing two measurements for each observation

Use line charts when:

• X-axis represents time or sequential progression
• You want to show trends, growth, or change over time
• Data points connect logically in order
• The path between points matters as much as the points themselves

Example: Plotting monthly revenue over 12 months? Line chart—time progresses sequentially. Plotting revenue against marketing spend for 50 campaigns? Scatter plot—both variables are numeric, neither is sequential.

How to Create a Scatter Plot in PowerPoint#

Step 1: Insert the Chart#

1. Click on your slide where you want the chart
2. Go to Insert > Chart in the ribbon
3. Select X Y (Scatter) from the left panel
4. Choose your style: Scatter with only Markers, Scatter with Smooth Lines, or Scatter with Straight Lines
5. Click OK

Recommended: Start with markers only. Add lines later only if they clarify the pattern.

Step 2: Enter Your Data#

PowerPoint opens an Excel-like spreadsheet with sample data.

1. Replace Column A (X Values) with your independent variable data
2. Replace Column B (Y Values) with your dependent variable data
3. Each row represents one data point (one dot on the chart)
4. To add multiple series, add data in Columns C, D, etc.
5. Delete extra rows you don't need
6. Close the spreadsheet when finished

The chart updates automatically as you type.

Data structure example:

       A           B
1   Ad Spend    Sales
2      1000     45000
3      1500     52000
4      2000     58000
5      2500     71000

Step 3: Format the Axes#

Set axis titles. Click the + icon (Chart Elements) > Axis Titles. Add clear labels describing what each axis represents—not just "X" and "Y," but "Marketing Spend ($)" and "Monthly Revenue ($)."

Adjust axis scale. Right-click an axis > Format Axis > Bounds. Set minimum and maximum to frame your data appropriately. Start at zero if magnitude comparisons matter, or start above zero if you want to zoom in on the relationship pattern.

Format axis labels. Select axis numbers, increase font size to at least 10pt for readability. Add thousands separators if needed (PowerPoint: Format Axis > Number > Use 1000 Separator).

Step 4: Add a Trend Line (Optional)#

Trend lines show the general relationship direction and strength.

1. Right-click any data point
2. Select Add Trendline
3. In Format Trendline pane, choose Linear (most common)
4. Check Display Equation on chart if you want to show the mathematical relationship
5. Check Display R-squared value on chart to show correlation strength (R² closer to 1.0 indicates stronger correlation)

When to add trend lines: When demonstrating correlation, making predictions, or showing relationship strength. Omit when highlighting outliers or showing clusters without claiming overall correlation.

Step 5: Format for Clarity#

Adjust marker size. Right-click data points > Format Data Series > Marker Options. Increase size to 8-12 points depending on data density. Larger markers are easier to see but may overlap with many data points.

Choose marker colors strategically. For single-series plots, use one color (typically brand blue or neutral gray). For multiple series, use high-contrast colors with a legend.

Handle overlapping points. If many points overlap, try:

• Making markers slightly transparent (Format Data Series > Fill > Transparency 30-40%)
• Reducing marker size
• Using marker borders instead of fills
• Adding slight random jitter to separate overlapping points

Remove gridlines. For most scatter plots, gridlines add clutter. Direct axis labels are clearer. Delete gridlines and let the axes provide reference.

Scatter Plot Best Practices#

After analyzing 150+ data presentations, these patterns separate insightful visualizations from confusing ones.

Add Context with Annotations#

Raw scatter plots require interpretation. Help your audience by:

• Adding text boxes to label outliers ("High-value customer segment")
• Drawing reference lines at key thresholds ("Break-even point")
• Dividing the plot into quadrants ("High Risk / High Return" in upper right)
• Noting what the pattern means in the title ("Strong positive correlation: r = 0.87")

Limit Data Points#

Ideal range: 10-100 data points. Fewer than 10 and patterns are hard to detect. More than 100 and the plot becomes a cluttered cloud requiring aggregation or sampling.

When you have thousands of points, either:

• Show a random sample of 100-200 points
• Use transparency to show density
• Aggregate data into bins
• Consider a different visualization (density plot or heatmap)

Use Consistent Scales#

If comparing multiple scatter plots side-by-side, use identical axis scales for all charts. Different scales make visual comparison impossible—a steep pattern in one chart might represent the same relationship as a flat pattern in another if scales differ.

Don't Confuse Correlation with Causation#

Simply because two variables correlate doesn't mean one causes the other. Ice cream sales and drowning deaths both increase in summer—they correlate, but neither causes the other. Both are driven by a third variable: temperature.

When presenting scatter plots, use language carefully:

• ✓ "Sales and ad spend are positively correlated"
• ✓ "Higher experience levels are associated with greater productivity"
• ✗ "Ad spend causes sales increases"
• ✗ "Experience drives productivity"

Unless you have experimental evidence or strong causal theory, describe relationships as correlations or associations, not causes.

Write Action Titles#

Action titles tell readers what conclusion to draw from the pattern.

Common Scatter Plot Mistakes#

Overplotting. When too many data points overlap, interpretation becomes impossible. Fix by using transparency (30-60%), reducing marker size, or sampling fewer points. Setting alpha transparency lets overlapping points blend together, revealing density patterns invisible with solid markers.

Wrong axis scaling. If you use linear scale for data with a large range of values, you might end up with a plot squeezed on one end and stretched on the other. Consider logarithmic scale for data spanning multiple orders of magnitude.

Incorrect aspect ratio. A wrong aspect ratio changes perceived slope and correlation strength. A tall narrow plot makes correlations look stronger than they are, while a wide short plot makes them look weaker. Use roughly equal axis lengths unless there's a specific reason to distort.

Missing trend lines when exploring relationships. Omitting trend lines when investigating correlations is a common error. Add trend lines to highlight direction and strength—they transform scattered dots into meaningful patterns.

Adding lines when no relationship exists. Conversely, forcing a trend line onto random scatter misleads audiences into seeing correlation where none exists. Only add trend lines when visual inspection suggests a pattern.

Poor labeling. Axes labeled "Variable 1" and "Variable 2" leave audiences guessing. Use specific, descriptive labels with units: "Annual Revenue ($M)" and "Marketing Spend ($000)."

Confusing scatter plots with line charts. Connecting all points with lines when data isn't sequential creates a tangled mess. Reserve connected lines for time series or ordered data.

Scatter Plot Variations#

PowerPoint includes specialized scatter plot styles for different visualization needs.

Scatter with Only Markers#

The default and most common type. Shows pure relationship without implying connection between points. Use this when points are unordered and you want to show correlation or distribution.

Scatter with Smooth Lines#

Connects points with curved lines smoothed through data. Use when data has natural sequence (time, temperature range, distance) and you want to show both individual values and overall trend. The smooth line emphasizes pattern over individual point-to-point changes.

Scatter with Straight Lines#

Connects points with straight line segments. Use for data that progresses sequentially but changes abruptly rather than smoothly. Less common than smooth lines because most sequential data benefits from smooth curves.

Bubble Chart#

A scatter plot where marker size represents a third variable. Each dot becomes a bubble sized proportionally to a third measurement. Use when you need to show three-dimensional relationships on a two-dimensional plane—but only when the third dimension adds meaningful insight. Too often bubble charts add complexity without clarity.

Creating Scatter Plots from Excel Data#

For presentations with dynamic data, linking scatter plots to Excel eliminates manual updates.

Manual method: Create your scatter plot in Excel, copy it, then use Paste Special > Paste Link in PowerPoint. When Excel data changes, right-click the chart in PowerPoint and select Update Link. Note that links break when files move or rename.

Add-in method: Tools like Deckary maintain Excel links automatically, updating PowerPoint charts when source data changes. For recurring presentations with multiple linked charts, this reduces maintenance time significantly.

Scatter Plots in Business Presentations#

Consultants use scatter plots selectively—usually for portfolio analysis or market positioning.

BCG matrix derivatives. Growth rate versus market share plotted for business units, with bubble size representing revenue. Each bubble's position indicates strategic priority.

Market positioning maps. Price versus perceived quality for competitor analysis, showing where the client sits relative to alternatives.

Operations analysis. Defect rate versus production volume to identify quality-volume relationships. Outliers flag sites requiring investigation.

Sales performance. Deal size versus win rate by sales rep, revealing whether reps win big deals at different rates than small ones.

The pattern: scatter plots when two-variable relationships drive strategic decisions, not when simpler charts would communicate the insight.

Key Takeaways#

Scatter plots reveal correlations other charts miss. They show how two numeric variables relate, making patterns and outliers immediately visible.

Use them for relationship exploration, not category comparison. If one variable is categorical or time-based, use bar charts or line charts instead.

Add trend lines when demonstrating correlation. R-squared values quantify relationship strength. Omit trend lines when showing clusters or outliers without claiming overall correlation.

Format for clarity: limit data points, use appropriate scaling, add descriptive labels, and annotate patterns. Help your audience interpret the relationship rather than leaving them to decode scattered dots.

Never confuse correlation with causation. Variables that move together may not have causal relationships—describe associations, not causes, unless you have experimental evidence.

Scatter plots answer the question "how do these two variables relate?" When that's the insight your audience needs, no other chart type works better. When it's not, simpler visualizations communicate more clearly.
