How to Create a Gantt Chart in PPT: 3 Methods Compared

PowerPoint has no native Gantt chart -- and that is a problem when a partner asks for an implementation timeline 30 minutes before a steering committee meeting. Understanding how to create a Gantt chart in PPT quickly is a core skill for anyone presenting project schedules to executives.

After building Gantt charts for 50+ transformation and implementation projects, we have tested every method available: the stacked bar workaround, SmartArt timelines, and dedicated add-ins. Each has clear trade-offs in speed, flexibility, and update-ability.

This guide walks through all three methods with detailed steps, covers the formatting standards that make Gantt charts readable at a glance, and explains when to use a Gantt chart versus a timeline or roadmap. For more on how Gantt charts fit into broader project planning, see our project plan examples and the Strategic Frameworks Guide.

How to Create a Gantt Chart in PPT: The Stacked Bar Method#

The stacked bar workaround is the most common free method. It uses an invisible series to position task bars along a timeline -- a technique that has been the standard workaround since PowerPoint first lacked a native Gantt chart type.

Time required: 30-45 minutes for initial creation, 15-20 minutes per update.

Step 1: Prepare Your Data#

Before opening PowerPoint, structure your project data with three columns:

The Start column represents the number of days from project kickoff. Duration is how many days the task runs. If you are working with actual dates, convert them to day numbers relative to your project start date.

Step 2: Insert a Stacked Bar Chart#

Go to Insert > Chart > Bar > Stacked Bar. PowerPoint opens an embedded Excel sheet. Enter your task names in Column A, start day values in Column B (label this "Start"), and duration values in Column C (label this "Duration"). Delete any extra default series.

Step 3: Make the Start Series Invisible#

This is the key step. Click any bar in the Start series to select all of them. Right-click and choose Format Data Series. Under Fill, select No Fill. Under Border, select No Line. The start bars disappear, leaving only the duration bars visible -- positioned exactly where each task should begin on the timeline.

Step 4: Fix the Axis Order#

By default, PowerPoint places the last task at the top. Right-click the vertical axis (task names), select Format Axis, and check Categories in reverse order. Your first task now appears at the top of the chart, matching how schedules are read top-to-bottom.

Step 5: Set the Timeline Scale#

Right-click the horizontal axis and select Format Axis. Set the minimum bound to 0 and the maximum to your total project length (in our example, 85 days). This eliminates dead space and ensures bars fill the chart area proportionally.

Step 6: Format for Clarity#

Color-code bars by workstream -- for example, blue for analysis tasks, green for implementation, orange for review. Add milestone diamonds manually using Insert > Shapes > Diamond, positioned at key dates. For status presentations, draw a vertical line at the current day to create a "today" marker.

Limitations: The stacked bar method has no automatic date calculation. Moving one task means recalculating every subsequent start value manually. There are no dependency lines, no Excel linking, and no milestone automation. As Microsoft's own documentation notes, creating proper Gantt charts requires either Microsoft Project or a dedicated tool.

Best for: One-time charts with fewer than 10 tasks that will not need updates.

SmartArt Timeline: Fast but Limited#

For simple milestone timelines without overlapping tasks, SmartArt offers a faster native option.

Time required: 10-15 minutes.

Go to Insert > SmartArt > Process and select Basic Timeline. Enter phase names or milestone titles in the text placeholders. Use the SmartArt Design tab to apply color schemes and add date labels beneath each milestone.

SmartArt timelines work for sequential phases -- "Discovery > Design > Build > Launch" -- but cannot show overlapping tasks, variable durations, or dependencies. They are closer to a roadmap than a true Gantt chart.

Best for: Executive summary slides showing 5-8 sequential project phases.

How to Create a Gantt Chart in PPT with Add-ins#

Add-ins like Deckary, Think-cell, and Office Timeline create proper Gantt charts in minutes, with features that native PowerPoint cannot replicate.

Time required: 2-5 minutes.

Deckary generates Gantt charts directly from Excel data with automatic date scaling, milestone markers, workstream grouping, and live Excel linking. Select your task data, click Gantt in the ribbon, and the chart populates with correct positioning and formatting. When dates change in Excel, the chart updates automatically.

Think-cell is the industry standard for consulting firms with comprehensive Gantt capabilities including dependency arrows, but costs $299+/year per user.

Office Timeline offers a dedicated timeline and Gantt builder with project management tool imports. The free version handles basic timelines; the Lite plan ($108/year) unlocks full Gantt features.

Best for: Recurring project schedules, charts that need regular updates, and presentations where professional formatting matters.

Method Comparison: Which Approach to Use#

The choice comes down to frequency. If you build one Gantt chart per quarter, the stacked bar method is fine. If you build them weekly or need to update dates regularly, the manual recalculation overhead makes add-ins worth the investment.

Gantt Chart Formatting Standards#

Formatting determines whether a Gantt chart communicates instantly or requires explanation. These standards apply regardless of which creation method you use.

Color Coding by Workstream#

Assign one color per workstream and use it consistently. Limit yourself to 5-6 colors maximum -- beyond that, the legend becomes its own comprehension exercise.

Milestone Markers#

Use diamond shapes at key decision points, deliverable due dates, and external deadlines. The PMI Disciplined Agile framework recommends distinguishing between internal milestones (filled diamonds) and external dependencies (hollow diamonds) so stakeholders immediately see what is within the team's control.

Today Line and Progress Indicators#

For status presentations, a vertical "today" line is non-negotiable. It instantly answers "where are we?" without requiring the audience to cross-reference dates. Show completed work with solid fills and remaining work with lighter shades or hatching.

Critical Path Highlighting#

Bold or use a distinct color for tasks on the critical path -- the longest sequence of dependent tasks that determines the project's minimum duration. Not every Gantt chart needs a critical path, but transformation projects with tight deadlines always benefit from one.

Gantt Chart vs. Timeline vs. Roadmap#

These three visualizations serve different audiences and purposes. Choosing the wrong one wastes slide space and confuses stakeholders.

As Smartsheet's analysis notes, Gantt charts expand on timelines by showing task relationships and dependencies -- which makes them essential for complex implementations but overkill for a two-slide executive update. For more on timeline approaches, see our guide on RACI matrix examples for assigning task ownership alongside your schedule.

Rule of thumb: Use a Gantt chart when tasks overlap and dependencies matter. Use a timeline when you need a clean, linear view of key dates. Use a roadmap when the audience cares about strategic direction, not task-level scheduling. For org-level planning, our guide on creating org charts in PowerPoint covers the organizational side of project setup.

Common Gantt Chart Mistakes#

After reviewing hundreds of project timeline slides, these are the errors we see most often.

Too Many Tasks on One Slide#

The most frequent mistake. Cramming 30+ tasks onto a single Gantt chart makes text unreadable when projected and defeats the purpose of a visual summary. Limit to 15-20 tasks maximum. Group related activities into summary bars -- "Technical Setup (3 weeks)" instead of listing every server configuration step.

Inconsistent Time Scale#

Mixing weeks and months on the same axis, or using unequal intervals, distorts the visual proportions. A two-week task should look half as long as a four-week task. Pick one scale (days, weeks, or months) and stick with it across the entire chart.

No Clear Critical Path#

Without highlighting which tasks drive the overall timeline, executives cannot identify where delays would cascade. If Phase 3 depends on Phase 2, and Phase 2 depends on Phase 1, that chain needs visual emphasis. Otherwise, a two-week delay on the critical path looks no different from a two-week delay on a non-critical workstream.

Missing "Today" Marker#

Status Gantt charts without a today line force the audience to mentally locate the current date. That cognitive overhead wastes meeting time. Always include a vertical marker at the current date with a label.

Overcrowded Legend#

Using 8+ colors with a multi-line legend competes with the chart itself for attention. Consolidate workstreams to 5-6 groupings and consider labeling bars directly instead of relying on a legend.

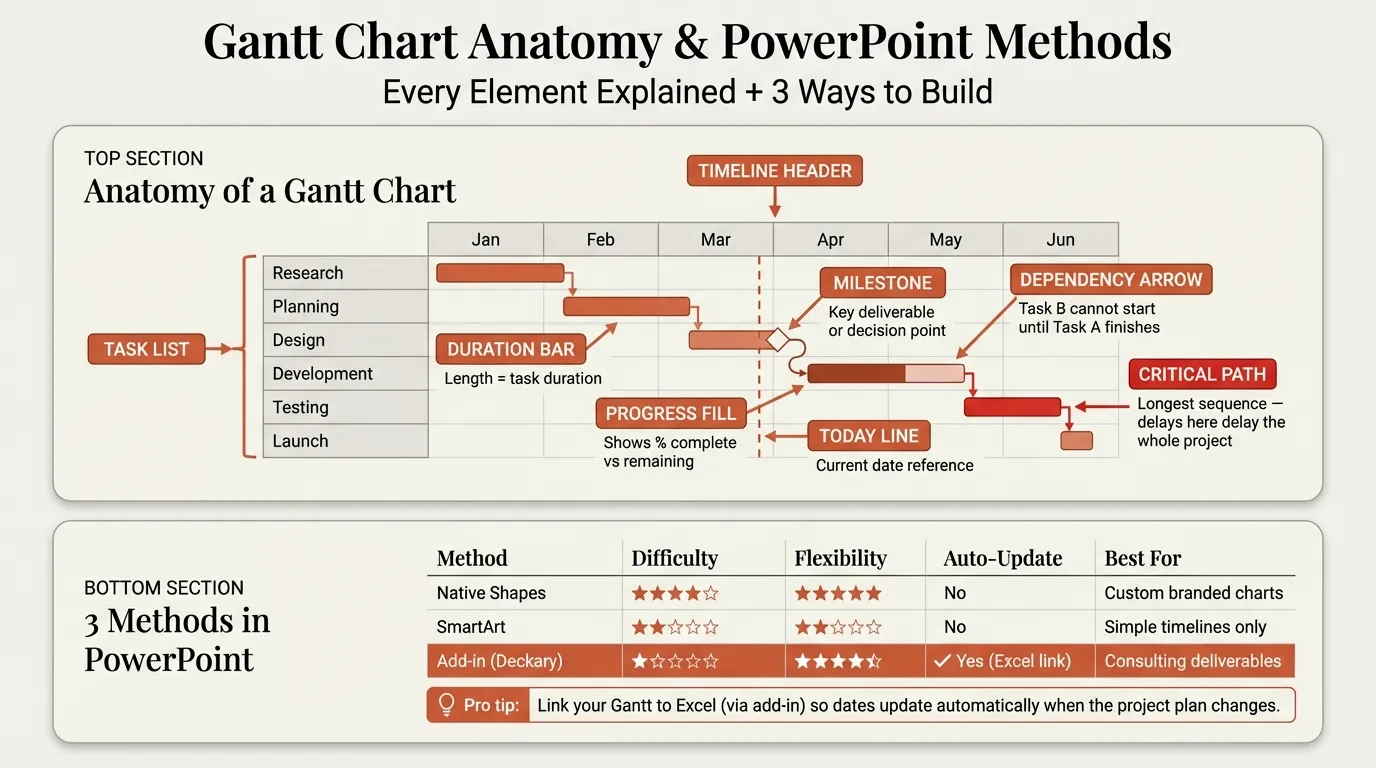

Gantt Chart Template#

For a ready-to-use starting point, download our Gantt Chart Template with pre-formatted workstream colors, milestone markers, and a today-line. It includes layouts for both 10-task and 20-task project schedules and follows the formatting standards covered in this guide.

Summary#

Creating a Gantt chart in PowerPoint requires a workaround because no native chart type exists. The right method depends on how often you build them and whether dates will change.

Key takeaways:

1. Stacked bar workaround works for one-time charts -- use the invisible series trick to position task bars, but expect 30-45 minutes of manual work
2. SmartArt timelines are fast for sequential milestones but cannot show overlapping tasks or durations
3. Add-ins like Deckary and Think-cell create proper Gantt charts in minutes with Excel linking and automatic formatting
4. Limit tasks to 15-20 per slide -- group sub-tasks into summary activities
5. Always include a today marker in status presentations
6. Choose the right visual -- Gantt for task-level scheduling, timeline for milestones, roadmap for strategic direction

For consultants building implementation timelines regularly, the stacked bar method becomes a time sink. A chart that takes 45 minutes to create and 20 minutes to update should take 2 minutes and 30 seconds. Explore Deckary's Gantt chart capabilities with Excel linking and automatic date handling.
